Honda HDS הינו מכשיר מקצועי לאבחון תקלות ברכבי הונדה ואקורה

Honda HDS Description

This interface module kit works with the OEM-Honda Diagnostic PC Software (HDS). It can diagnose all Honda and Acura vehicle systems on models from 1992 to year 2006, including CAN-BUS system

Functions supported by Honda/Acura protocols

• Reading and decoding fault codes from control blocks' memory;
• Deleting fault codes;
• Displays system's current parameters in digital form;
• Displays system's current parameters in graphical form;
• Combined displaying of data;
• Management of executive devices;
• Logs keeping - writing and keeping of digital parameters in memory;
• Special functions - changing of permissible settings of blocks, programming etc

Functions supported by OBD-II protocols

• Mode $01 - Displays system's current parameters in digital form (up to 8 parameters at once);
• Mode $02 - Displays parameters of "freeze" frame;
• Mode $03 - Reading and decoding of fault codes from control block's memory;
• Mode $04 - Deleting of fault codes (memory clearing);
• Mode $05 - Displays results of oxygen sensors;
• Mode $06 - Displays results of changeably controled systems and components;
• Mode $07 - Displays results of constantly controled systems and components;
• Mode $08 - Management of executive devices;
• Mode $09 - Displays car's identification info

Hardware and software requirements

• Hard disk drive with at least 400MB of free space
• CD-ROM drive (if a high-speed Internet connection is not available)
• RS232 port required to connect PC to HIM (PC version software only)
• Monitor capable of displaying in VGA mode or above (1024 x 768 recommended)
• Internet connection (high-speed connection recommended)

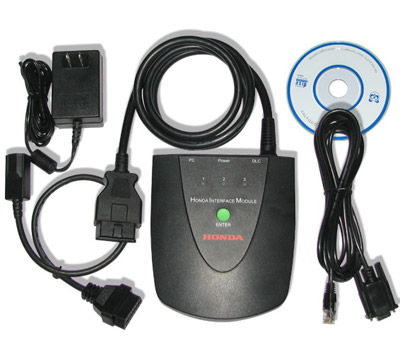

Honda Diagnostic System kit includes

• 1 x HIM with OBD II Cable
• 1 x DVD
• 1 x 3 Pin Cable
• 1 x RS232 Cable
• 2 x Selftest Adapter
• 1 x Storage Case
